Demag DC-Pro Chain Hoist

Demag DC-Pro electric chain hoist is fully functional and versatile, and can be quickly installed and put into use. The main components of this Demag hoist are maintenance-free for 10 years. The load capacity can reach 5 tons.

The standard configuration of Demag electric hoist DC-PRO series includes 24 V contactor control, operating limit switch and overtime operation timer, making it safer.

Demag Electric Hoist DC-Pro High-performance Equipment:

  • All features are integrated as standard

  • Standard configuration has two lifting speeds

  • 24 V contactor control

  • Operating limit switch (upper/lower limit)

  • Timeout operation timer

  • Aluminum housing components with powder coating

  • Power continuity rate: 60% (40/20), 360 times/hour

  • Provides signals to the application via three motion axes

  • Suitable for joint operations

  • Wide range of lifting weight options with clear classification, up to 5000kg

  • Two suspension brackets for modified C size (suitable for models DC 1–10)

Demag Electric Hoist DC-PRO type has long service life

  • Reduction gearbox, brake and friction clutch are maintenance-free for 10 years (DC-Pro 10–25 brake is maintenance-free for 5 years)

  • Using regenerative braking, the brake wear is small

  • No need to adjust brakes

  • In load-bearing layout, the friction clutch is installed before the brake, without the need to reduce the load

  • Reduced chain wear thanks to 1/1 pulley magnification for lifting capacities up to 1000 kg

  • Robust cylindrical rotor automatic motor with fan and independent DC brake

  • Double-sealed brakes are used to prevent brake adhesion.

Electric Hoist DC-Pro Hoist is Reliable in Operation

  • Friction clutch has automatic cut-off function, eliminating the need for continuous friction.

  • 24 V contactor control with internal "3-pole" signal transmission

  • Chain hoist and mobile drive with protection class IP 55 and insulation class F

  • If the control fails, the system will automatically start

Demag Electric Hoist DC-Pro Meet Ergonomic Design

  • Equipped with low fatigue and highly adjustable DSC/DSC-S flashlight door cable,

  • The length of the control cable and the position of the flashlight door can be adjusted to meet the specific needs of the site. (No wiring required)

  • The rotating suspension bracket allows the chain hoist to be installed after the trolley is installed.

Demag Electric Hoist DC-Pro Is Service-friendly

  • All electrical connections are plug-and-play designed, including the lifting system and drive system

  • Display shows usage status/error messages and counts usage

  • Infrared diagnostic interface with IDAPSY software (can read and manage specific parameters)

  • Equipped with quick access cover for quick inspection of plug connections, strain relief layout, current collector with 3m control cable and chain drive.

  • Chain lubrication via lubrication hole in the chain guide, improved lubrication between chains (models DC 1–10)

  • Chain drives can be replaced without removing motor or gearbox components, reducing downtime.

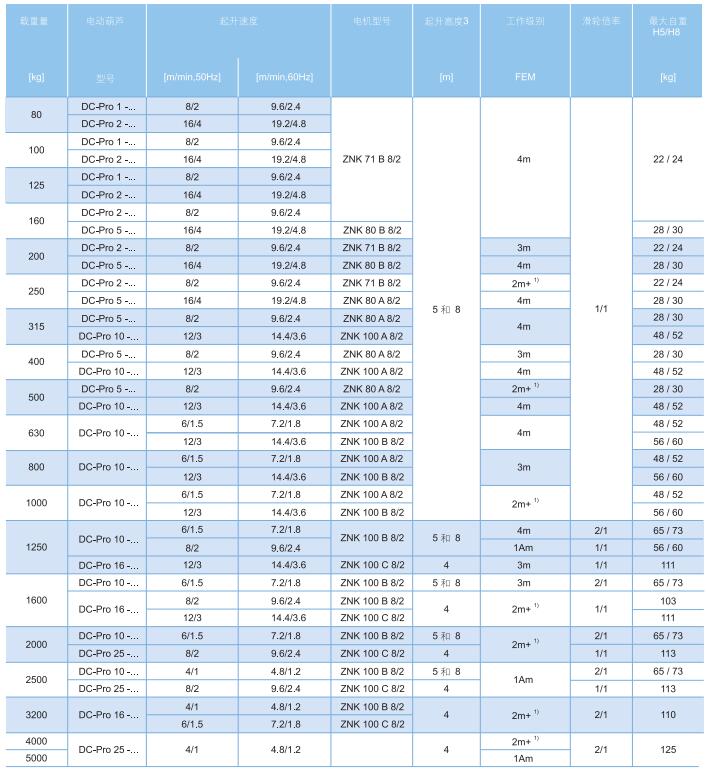

Demag Electric Hoist DC-Pro Type Parameter Table
