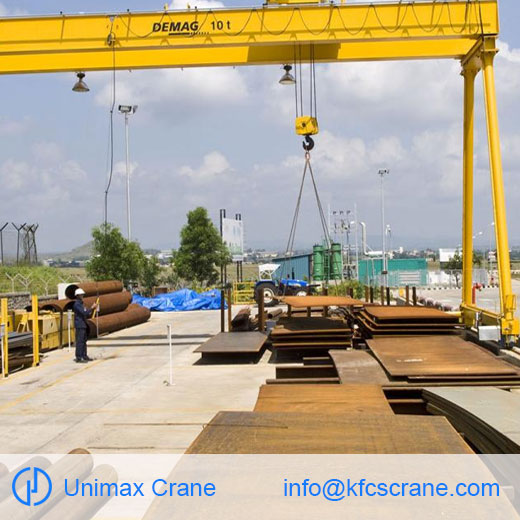

Full-portal cranes up to 50 tonnes

Demag full-portal cranes can often be integrated into existing production facilities and inhouse logistics processes with only little design effort. They mainly differ from semi-portal cranes by having an integrated articulated leg, which compensates any movements. The load-bearing crane girder is part of the frame structure which, together with the legs at either end, forms a travelling bridge. The cranes run on ground rails, which eliminates the need for a crane runway. Full-portal cranes are preferably used for outdoor operation in storage yards and loading areas.



Single-girder semi-portal cranes: load capacities up to 12.5 tonnes, spans up to 30 m

Double-girder semi-portal cranes: load capacities up to 50 tonnes, spans up to 35

The benefits at a glance

Operation as a stand-alone unit – without additional crane runways

Double-girder full-portal cranes with an accessible travelling hoist, maintenance walkway and access ladder

Cost-effective solution, ideal supplement to in-house logistics

Optional cable-connected control pendants or radio controls

Can also be equipped with 2 hoists or 2 crabs

Power is supplied via a cable reel that is fitted to a leg

Outdoor package with wind safety system to monitor outdoor operation

Rail clamp to lock the crane to prevent damage in stormy conditions
